14x18 Lean-To Storage Shed Plan

You can buy the 14×18 lean-to shed plan now, or open the free 14×18 lean-to shed plan PDF first and see how the drawings look. As far as we could find, nobody else sells a plan drawn for exactly this size: the nearest ones online are 14×14, 14×16 and 14×20 lean-tos.

14×18 lean to shed plans: the numbers for a site check

The very first thing the plan asks you to do, before a stake goes in, is call 811 so somebody marks where the buried lines run (it costs nothing). After that you stake the corners and keep adjusting until both diagonals come out at 22′ 9 5/8″. You’ll notice the pad is 12″ bigger than the shed all the way around, which gives rain somewhere to drain. If your yard slopes, there’s a string-and-line-level method for finding the fall and building up the low side.

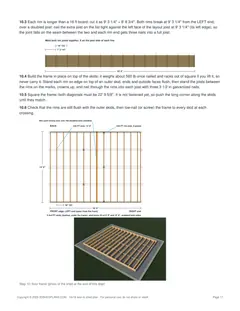

How the 14×18 lean-to shed goes together

The skids are 18 ft long, which is longer than a 16 ft board, so each one is spliced from two pieces. Every joint sits right under a floor joist and gets a pressure-treated 2×4 scab on both faces. The rims are spliced the same way, 9′ 3 1/4″ plus 8′ 8 3/4″, with the doubled joist under the seam. Nailed up, the floor frame weighs around 560 lb, so you build it in place on the skids and square it there.

How the walls go up

Each wall is framed flat on the deck, stood up bare and braced. The siding waits until all four walls are standing and tied together.

Before each lift, tack two or three nails part way through the bottom plate into the deck so the wall hinges instead of sliding. Where a wall tips up at the deck edge, nail two stop blocks (12″ 2×4 offcuts) to the outside of the rim with their tops 2″ above the deck. Nobody stands on the ground in front of a wall while it goes up. And pick a calm day, because a bare frame catches wind like a sail.

The tall front wall comes up in two sections, split 11′ 11 1/4″ from the left corner, and the full-length second top plate ties them together. The back wall is only about 210 lb, but at 18 ft long it sags between two lifters, so a third person steadies the middle. Braces run out to stakes past the deck so the floor stays clear for the next wall. Since a lean-to’s side walls have no level plate to lap the corners, a metal twist strap ties each corner.

Sloped walls, one stud at a time

The side walls follow the roof line, so no two studs are the same length. They run from 6′ 2 3/8″ at the back to 9′ 6 1/4″ at the front, each top cut with a 14 degree bevel through the 1 1/2″ thickness, square across the face. Watch the tall ones: the “8 ft studs” most stores stock are 92 5/8″ precuts. The cut list tells you to buy full 96″ or 10 ft boards for those.

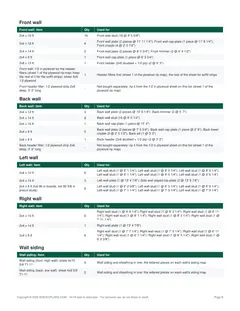

What is on the 14×18 lean-to shed materials list

The shopping list is broken out by stage, and every line names the stock length that wastes the least, so you’re not guessing at the lumber counter.

For the foundation and floor you’re buying pressure-treated 4x4s for the five spliced skids, the 2×4 splice scabs, 2×6 rims (two pieces each), 16 pressure-treated 2×6 x 14 ft joists and 9 sheets of 3/4″ tongue and groove plywood. The walls take studs and plates, a doubled 2×8 door header and a doubled 2×6 window header, plus 18 sheets of 5/8″ T1-11 in a mix of 4×8, 4×9 and 4×10. Each wall gets its own siding map, so you can see which sheet goes where before you buy it.

Up top, there are 2×8 x 18 ft boards for 15 rafters and 2 fly rafters, 2×8 blocking, 10 sheets of 7/16″ OSB, 2 rolls of 15 lb felt, 11 bundles of shingles and 8 lengths of drip edge. The door and trim add 2 more T1-11 sheets for the leaves, 6 T-strap hinges, a latch, barrel bolts, the prefabricated window, 1×8 fascia and 1×4 casing and corner boards. Then there’s the small stuff that adds up: nails by the pound, 26 hurricane ties, 4 framing angles for the end rafters, 4 twist straps, insect screen and 6 gallons of exterior paint.

One practical note on delivery. The rafters and rake fascia come out of 18 ft boards, and not every yard’s truck carries that length, so ask when you call in the order.

What does it cost to build a 14×18 lean-to shed?

Honestly, lumber prices move around too much by region and by season for us to print a number you could trust. That’s why the plan lists quantities, not dollars. Most yards will happily quote the whole shopping list if you hand it over, and because it’s split by stage you could buy the foundation and floor now and price the walls and roof once you get there. Expect the bulk of the bill to be the 20 sheets of T1-11, the 18 ft 2x8s, the plywood and OSB, and the shingles.

What you can fit in a 14×18 lean-to shed

The front wall is 9′ 10 1/8″ tall, so ladders, long-handled tools and tall shelving go there. The back wall is 6′ 5″, about right for waist-high benches and shelves under the window. The walls are 14 ft deep outside, so a 24″ deep shelf along the back still leaves about 11′ 5″ of floor in front of it.

For a mower or a cart, the numbers are a 60″ wide rough opening, slightly less once the leaves are hung, and 6′ 6″ of height. The deck sits 9 3/4″ above the gravel. The plan doesn’t include a ramp, so build or buy one separately.

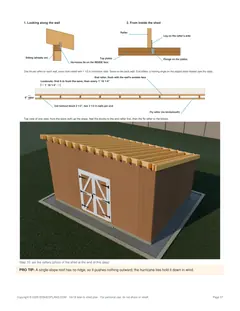

How the 14×18 lean-to roof is framed

A single-slope roof has no ridge and doesn’t push the walls apart, so no ties cross the inside of the shed. Hurricane ties hold the rafters down at both plates, and the two end rafters get framing angles instead.

For the 13′ 5″ clear span, the plan goes with 2x8s at 16″ on center in #2 spruce-pine-fir or Douglas fir-larch, and it figures on roughly 30 psf of ground snow. Where you live might see more than that, which is why the plan itself tells you to run the rafter size past your local permit office first. Each rafter hooks over both walls with a birdsmouth: a 3 1/2″ level seat and a 7/8″ heel, about 12% of the rafter’s depth.

Before cutting all 15, the plan has you check the walls. Measure from the inside of the front plates to the outside of the back plates at both ends and in the middle; it should be 13′ 8 1/2″ everywhere. Then cut one rafter as a pattern from the front tail, test it at both ends of the shed, and cut the rest to match.

The 2×8 blocking over the walls is ripped to 6 1/2″ and drilled with 1″ vent holes before it goes in, with insect screen stapled along the tails over the vent gap before the soffit closes it. At a 3/12 pitch, shingle makers ask for double felt: a 19″ starter strip, then 36″ courses lapping 19″ (Asphalt Roofing Manufacturers Association).

Working safely at the high edge

With the front edge 11′ 6″ off the ground, the plan spends real space on ladders and roof work, and it’s worth reading before you climb anything. The extension ladder (a 20 ft one) gets tied to the building at the top, set out 1 ft for every 4 ft of height, and long enough to stick up 3 ft past the edge. Before you lift a ladder or carry a sheet anywhere, look up: you, the ladder and the sheets all stay at least 10 ft from overhead lines.

On the roof itself, a 2×4 screwed down about a foot above the eave gives you a foot stop, and nobody works up there alone. A sheet of T1-11 or a bundle of shingles runs 60 to 80 lb, too heavy to haul up a ladder two-handed. For the siding there’s a smarter move: screw a 2×4 ledger to the floor frame, stand each sheet on it, and let your helper hold it plumb while you tack the corners.

Free 14×18 lean to shed plans PDF vs the full plan

The free PDF shows how the drawings look and what the finished shed looks like, so you can judge it before paying. The full plan adds all 19 step sections, the shopping and cut lists, the cutting plan, every stud length for both sloped walls, the rafter marks table, sheet maps for the floor, walls and roof, and the full door build with Z braces and an astragal. We build every plan from one 3D model, and this one had to get through 84 automatic checks (plates plus studs equal the wall height, rafters fit the span, sheets cover every surface) before we put it up for sale.

Before you build a 14×18 lean-to shed

Sheds this size get people asking about permits, and the answer really does depend on your town (and your HOA, if you have one). Size, height, how close you can build to the property line and whether you need a permit at all vary, so check your local permit office before you spend money on lumber. The same office can tell you if heavy snow or high wind where you live calls for closer rafter spacing, larger rafters or anchors.

A few things matter for how long the shed lasts. The skids should be ground-contact pressure-treated 4x4s, rated UC4A or higher, laid crown up, and if one sits low you raise it with gravel or treated shims and nothing else. Keep at least 6″ between the siding and the dirt or mulch, and take a look at the shingles, caulk and paint each spring. While you’re building, keep the lumber stacked flat and covered, since wood that stays wet decays faster (USDA Forest Products Laboratory Wood Handbook).

Tools and ladders the plan lists

You probably own the basics already: a circular saw, a drill/driver and a framing hammer. On top of those, the list calls for a miter saw (the door braces and trim are much easier with one), a reciprocating saw, a couple of bar clamps for marking the rims together, a small sledge to drive the brace stakes and a hand tamper for the gravel. For ladders, two 6 ft step ladders get you through the walls and rafters, and the 20 ft extension ladder handles the high edge.
