DIY 6x10 Lean-To Storage Shed Plan

The full plan is $19.99: buy the 6×10 lean-to shed plan. To see the drawing style first, open the free 6×10 lean-to shed plan PDF.

6×10 lean to shed plans: the numbers for a site check

The walls take 10 ft by 6 ft, but the roof sets the space you need: 10′ 9 1/2″ long and 7′ 5 1/2″ from front to back at the fascia. Measure the drip line at the back against fences and property lines, not just the walls.

How the 6×10 lean-to shed goes together

Three skids and a floor you build in place

The three skids are full 10 ft boards. They run left to right, parallel to the front wall, 2′ 10 1/4″ on center, with the front and back rims standing on the outer two. Nine 2×6 joists, each 5′ 9″ long and cut two from a 12 ft board, fill the space between the 10 ft rims. The finished frame weighs about 160 lb, so the plan has you build it on the skids, push it until both diagonals read 11′ 7 15/16″, and only then toe-nail it down. Three sheets of tongue and groove plywood cover the deck: one full row, then a last row ripped to 2′ 0 1/2″ with flat 2×4 blocks under its seam.

How the walls go up on a 6 ft deck

The front wall is taller than the deck is deep, so the order matters:

• Front wall first. Frame it flat with the bottom plate 3 1/2″ in from the front edge. Lying down it measures 7′ 11 5/8″ plate to plate, so the top plate hangs 2′ 3 1/8″ past the back edge on sawhorses set to deck height. At about 160 lb it is the heaviest lift: two people tip it up and brace it from the outside to stakes about 5 ft out.
• Back wall turned around. With the front wall up there is not room to frame it at its own edge, so you build it facing the other way, tip it up beside the front wall and walk it upright across the deck to the back edge. About 150 lb, with a diagonal brace on and the bottom plate on the deck the whole way.
• Side walls last. Each sloped side wall weighs about 70 lb. It is framed between the standing walls with plates 1/8″ shorter than the gap, so it drops in.
• Siding after. All four walls go up as bare frames, and the T1-11 goes on once they stand. One person can hang it from a 2×4 ledger screwed to the floor frame.

The side walls have six stepped studs each, beveled at 14.0 degrees on top. The longest is 7′ 9 1/4″, so buy full 96″ boards: the 92 5/8″ precut studs many stores sell are too short. A lean-to side wall has no level plate to lap, so a twist strap ties each of the four corners.

What is on the 6×10 lean-to shed material list

The shopping list is split by stage, in the stock lengths that waste the least:

• Foundation and floor: three 10 ft pressure-treated 4×4 skids, two 10 ft pressure-treated 2×6 rims, five 12 ft pressure-treated 2×6 boards for the 9 joists, and 3 sheets of tongue and groove plywood.
• Walls: 2×4 plates and studs (9 studs in the front wall, 10 in the back, 6 stepped studs in each side wall), a doubled 2×8 door header and a doubled 2×6 window header, plus 10 sheets of T1-11 (4×9 sheets on the tall front wall and parts of the side walls, 4×8 on the rest).
• Roof: sixteen 8 ft 2x4s for the rafters, fly rafters, lookouts and blocking, 3 sheets of OSB, 1 roll of 15 lb felt, 3 bundles of shingles and 5 pieces of drip edge.
• Door, window and trim: 2 new T1-11 sheets for the door leaves, 6 T-strap hinges, a handle and latch, 2 barrel bolts, the prefabricated window, 1×6 fascia, a 1/2″ plywood sheet for the soffit and header fillers, and 1×4 casing and corner trim.
• Hardware: 19 lb of framing nails, 18 hurricane ties, 4 twist straps, construction adhesive, flashing tape, drip cap, insect screen and 3 gallons of paint.

The longest boards on the list are 14 ft, and each rafter comes from its own 8 ft 2×4, so pick straight ones at the yard.

What you can fit in a 6×10 lean-to shed

Six feet of depth makes this a reach-in shed with room to step inside. The clear span between the front and back walls is 5′ 5″, and the 5 ft door opens half of the 10 ft front.

• Garden tools. Rakes, shovels and long-handled tools hang on the 8 ft tall front wall on each side of the door.
• Push mower and wheelbarrow. The leaves hang inside the 60″ opening, so the clear width is a little less. Measure your mower or wheelbarrow at its widest point and plan a ramp up the 9 3/4″ step.
• Bins, cans and bags. Trash bins, bags of soil or salt and fuel cans line up along the 10 ft back wall.
• Shelves under the window. The sill sits 2′ 10″ above the floor plate in the back wall, so low shelves fit beneath it and get the daylight.

Lawn tractors and riding mowers are not a realistic fit for a 6 ft deep floor. If you need one inside, look at a deeper plan.

How the 6×10 lean-to roof is framed

A single-slope roof has no ridge and pushes nothing outward, so no rafter ties cross the shed. Hurricane ties on every rafter hold it down, and the end rafters are nailed up through the sloped side wall plates every 16″.

• Why 2×4. The plan says span tables call for 2×4 over the 5′ 5″ clear span at 16″ on center, in #2 spruce-pine-fir or Douglas fir-larch at 30 psf ground snow. Ask your local permit office for your area’s snow load.
• Two birdsmouths. Each rafter hooks over both walls with a 3 1/2″ level seat and a 7/8″ plumb heel, 24% of a 2×4’s depth. Never cut deeper than one third.
• Pattern first. Cut one pattern rafter from a 7′ 7 5/8″ board, test it on both walls at each end, then cut the other 8 and the 2 fly rafters.
• Blocking and rakes. 2×4 blocks ripped to 2 5/8″ tall stay under the sheathing and fill the bays over each wall. Short 2×4 lookout blocks hold the fly rafters 4″ out at each rake.
• Low pitch, double felt. At 3/12 the shingle makers ask for two layers: a 19″ starter strip, then 36″ courses lapping 19″ (Asphalt Roofing Manufacturers Association). The plan then lays 18 courses at 5″ exposure, about 76 shingles in all.

Free 6×10 lean-to plan PDF vs the full plan

The free 7-page streamlined version walks through the five stages with views of the same 3D model. The full 37-page plan adds all 19 step sections, the stepped stud lengths for the sloped walls, the pattern rafter marks, the deck and sheathing piece maps, and the shopping, cut and cutting lists. Every number comes from one 3D model, checked by 72 automatic tests before release.

Before you build a 6×10 lean-to shed

• Permits. Size, height and setback rules vary by town and HOA, even for 60 sq ft and a 9′ 5″ high edge. Check your local permit office before you buy lumber.
• Placing it against a wall. This plan is a freestanding shed with four framed walls, not a lean-to that bolts to the house. If you set it beside a house or fence, the low back wall faces that wall, and so do the window and the low eave. The eave already sticks out 8″ past the back wall, so leave room to reach in, paint the back wall and keep that eave clear of the house siding. Ask your local permit office whether there is a minimum distance from the house.
• Drainage. The roof drains to the back. Next to a house, that water lands between the shed and your foundation, and the list has no gutter. Slope the gravel pad away from the house, keep 6″ or more between the siding and the soil or mulch, and keep the drip edge clear.
• Skids. Use ground-contact rated pressure-treated 4x4s (UC4A or higher), set crown up, and shim a low skid with gravel or treated shims only.
• Materials. Store lumber flat and covered, since wet wood decays faster (USDA Forest Products Laboratory Wood Handbook). Check the stamp on each OSB sheet for its span rating (APA: OSB).

Snow sits longer on a 3/12 roof. In heavy snow or high-wind areas you may need closer rafter spacing, larger rafters or ground anchors, so check your local permit office.

Tools and ladders the plan lists

Beyond a circular saw with a rip guide, drill/driver and framing hammer, the list adds a miter saw for the door braces (set to 29 degrees) and trim, a reciprocating saw for flush cuts in the door and window openings, a 3 lb sledge for the brace stakes, two 24″ bar clamps for marking the rims, and a hand tamper for the pad. Two 6 ft step ladders cover the walls and rafters. A 16 ft extension ladder handles roof work at the high edge, about 9′ 5″ up.

Related plans

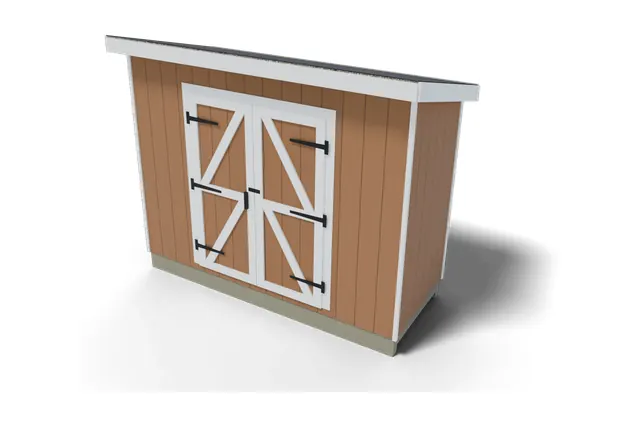

• Same 10 ft width, 2 ft shallower: the 4×10 lean-to shed plan.
