8x10 Lean-To Storage Shed Plan

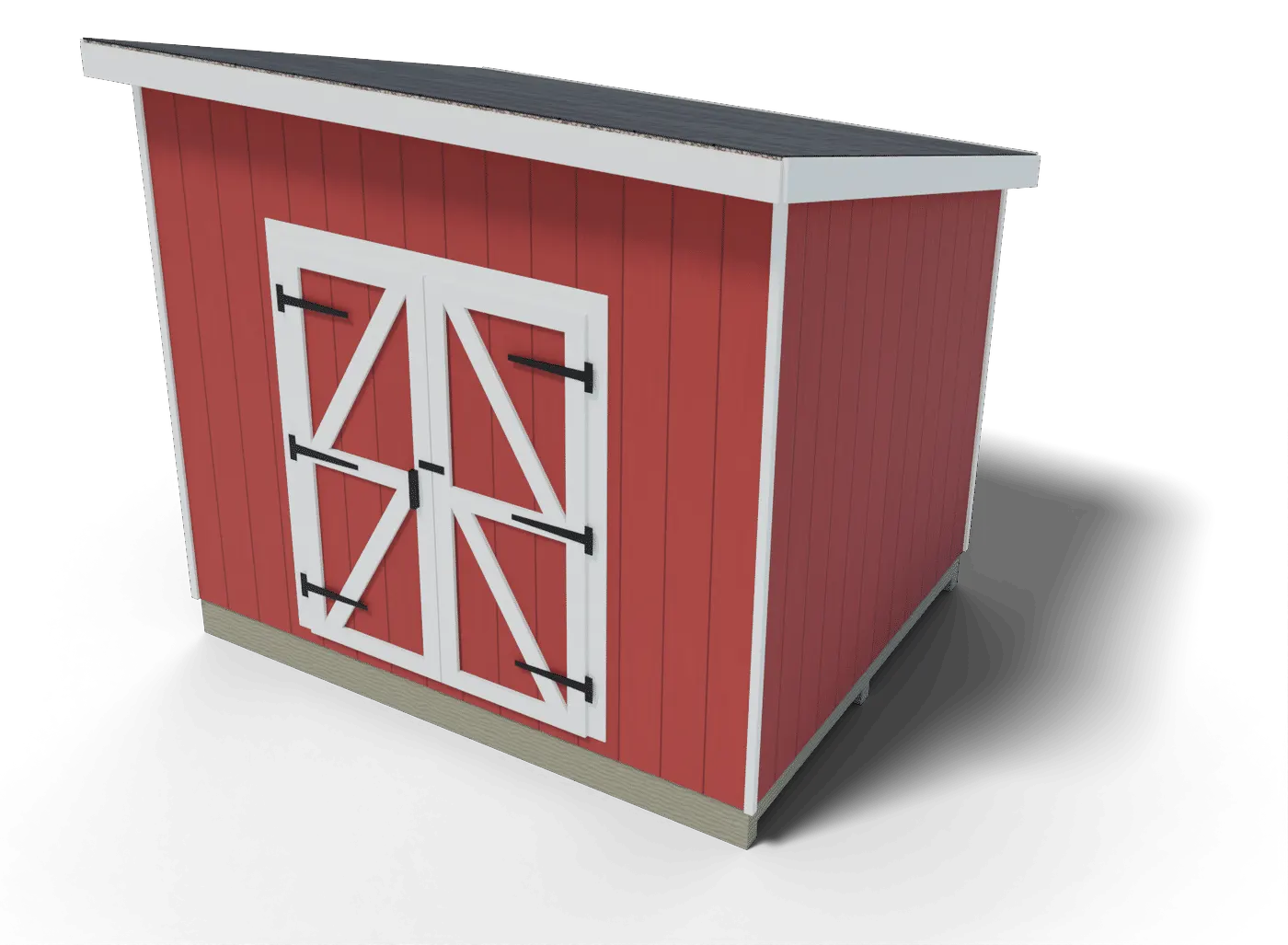

You can buy the 8×10 lean-to shed plan now, or flip through the free 8×10 lean-to shed plan PDF first to see how the drawings look. One thing to know up front: the door is in the 10 ft front wall, so you walk in on the long side.

8×10 lean to shed plans: the numbers for a site check

Before you drive a stake, the plan has you call 811 (it’s free) a few working days ahead so the buried power, gas and water lines get marked. Then you stake the corners and nudge one stake until both diagonals read 12′ 9 11/16″. The pad runs a foot past the shed on every side so rain has somewhere to go. Digging tends to knock the stakes, so set them again and recheck the diagonals afterwards.

If the yard slopes, a string and a line level tell you how much. A few inches of fall gets made up with more stone on the low side, tamped every 2″. More than that and the plan gives you two choices: dig the high side down, or set solid concrete blocks under the skids on the low side.

How the 8×10 lean-to shed goes together

The skids sit 3′ 10 1/4″ on center, and the plan asks for ground-contact lumber (UC4A or higher), crown up. Nailed together, the floor frame weighs about 200 lb and racks out of square if you carry it, so you build it right on top of the skids, square it by pushing the long corner along, and only then nail it down.

Three sheets of plywood cover the deck. Tongue and groove sheets only cover about 47 1/2″ once they lock together, so two rows come up 1″ short of 8 ft. So you rip a 1×4 down to a 1″ filler strip for the back rim, and the back wall’s bottom plate hides it.

How the walls go up

Each wall is framed flat on the deck, stood up bare and braced. Siding waits until all four stand and the corners are nailed.

The front wall goes first, while the whole deck is free. Laid flat it measures 8′ 5 5/8″ plate to plate, longer than the floor is deep, so the top plate hangs 9 1/8″ past the back edge on blocks or sawhorses while you nail it. You set the bottom plate back 3 1/2″ from the front edge, and when the wall tips up it lands flush.

Before each lift, tack a few nails part way through the bottom plate into the deck so the wall hinges and doesn’t slide, and nail two short 2×4 stop blocks to the rim with their tops 2″ above the deck. Pick a calm day. A bare frame catches wind like a sail, and nobody stands on the ground in front of a wall while it goes up. The braces run out to stakes about 5 ft from the shed so the deck stays clear for the next wall.

The side walls are framed 1/8″ shorter than the gap between the front and back walls, so they drop in between them. A lean-to has no level plate on the side walls to lap the corners, so each corner gets a metal twist strap on the inside.

Sloped walls, one stud at a time

The side walls follow the roof, so every stud is a different length: 6′ 5 3/8″ at the back up to 8′ 3 1/4″ at the front, seven per wall. Each top gets a 14 degree bevel through the 1 1/2″ thickness, square across the face, and the cut list gives each stud’s length to the long point. The front wall studs are 8′ 2 5/8″, so the list has you buy 10 ft boards for them.

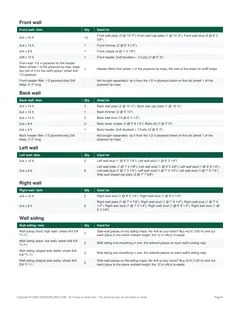

What is on the 8×10 lean-to shed materials list

The shopping list is split by stage, and every lumber line names the board length that wastes the least. The longest boards are 14 ft, and most of the framing comes out of 8 and 10 footers.

For the foundation and floor that means three pressure-treated 4×4 x 10 ft skids, two 2×6 x 10 ft rims, nine 2×6 x 8 ft joists and 3 sheets of 3/4″ tongue and groove plywood. The walls take 2×4 plates and studs, a doubled 2×8 door header and a doubled 2×6 window header with 1/2″ plywood between the plies, and 10 sheets of 5/8″ T1-11 in 4×8 and 4×9. Can’t find 4×9 at your store? The list says to buy 4×10 and cut it to the same marked height.

The roof is eleven 2×4 x 10 ft boards for the rafters and fly rafters, 4 sheets of 7/16″ OSB, 1 roll of 15 lb felt, 4 bundles of shingles and 5 pieces of drip edge. The door adds 2 more T1-11 sheets for the leaves, 6 T-strap hinges, a latch, two barrel bolts and the 1×4 frame boards. Then there’s the hardware: 14 hurricane ties, 4 framing angles for the end rafters, 4 twist straps, 19 lb of 16d galvanized framing nails, flashing tape for the window, insect screen and 4 gallons of exterior paint and primer.

What does it cost to build an 8×10 lean-to shed?

We don’t print a total, because lumber prices swing too much by region and season for a number to mean anything. The plan gives quantities instead, and a lumber yard can price a list like that. Since it’s split by stage, you can buy the foundation and floor first and price the walls and roof once you get there. The sheet goods are the lines to watch: 12 sheets of T1-11, 3 of plywood and 4 of OSB, plus the shingles.

What fits in an 8×10 lean-to shed

The tall side is the front, so long rakes, shovels and a ladder go in the corners either side of the door. The back wall is 6′ 8″ with the window in it, a good spot for a bench or shelves. Inside, wall to wall, the shed is about 7′ 5″ deep, so measure your shelves against that.

For wheeled gear, the numbers are a 60″ wide rough opening, a bit less once both leaves hang, and 6′ 6″ of clear height before the 1×2 door stop goes under the header. The deck sits 9 3/4″ up and the plan doesn’t include a ramp, so measure your mower or cart and plan one separately.

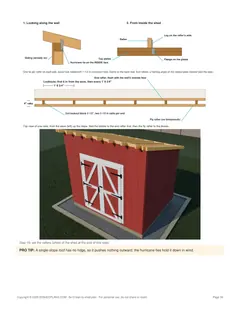

How the 8×10 lean-to roof is framed

A single-slope roof has no ridge, so it doesn’t push the walls apart and no ties cross the inside of the shed. Hurricane ties hold each rafter down on the inside face of the walls, and the two end rafters get framing angles because the side walls cover that spot.

The plan sizes the rafters as 2x4s at 16″ on center for a 7′ 5″ clear span, in #2 spruce-pine-fir or Douglas fir-larch, assuming about 30 psf of ground snow. Snow where you live may be more than that, so the plan itself says to check the rafter size with your local permit office before you buy. Each rafter hooks over both walls with a birdsmouth: a 3 1/2″ level seat and a 7/8″ heel.

Before cutting all nine, measure from the inside of the front plates to the outside of the back plates at both ends and in the middle. It should be 7′ 8 1/2″ every time. Then cut one pattern rafter, try it at both ends of the shed, and cut the rest to match. The blocking between the rafters is ripped to 2 5/8″ and drilled with 1″ vent holes, and insect screen goes under the tails first. The soffit strips then go on 1/4″ off the siding, so that vent gap stays open. At a 3/12 pitch, shingle makers ask for two layers of felt: a 19″ starter strip, then 36″ courses lapping 19″ (Asphalt Roofing Manufacturers Association).

Free 8×10 lean to shed plans PDF vs the full plan

The free PDF shows the finished shed from the front and back and walks the five stages in 3D, without the measurements. The full plan has the shopping list, cut list and cutting plan, every wall drawn stud by stud, every stud length for both sloped walls, the rafter marks, piece maps for the floor, siding and roof sheets, and the full door build with Z braces and an astragal. It runs 17 build steps from ground prep to paint, with a checklist to tick them off. Every number comes from one 3D model of the shed, and the plan passed 76 automatic checks before it went on sale (plates plus studs equal the wall height, rafters fit the span, sheets cover every surface).

Before you build an 8×10 lean-to shed

Rules for sheds come from your town, and from your HOA if you have one. Size, height, distance from the property line and permits all vary, so check your local permit office before you spend money on lumber. Ask the same office whether heavy snow or high wind where you live calls for closer rafters, bigger rafters or ground anchors. The plan says plainly that it uses common small-shed framing and isn’t an engineered design.

A few habits make the shed last. Raise a low skid with gravel or treated shims, never untreated wood. Keep at least 6″ between the siding and the dirt or mulch. Every spring, look for lifted shingles, recaulk the trim joints, touch up the paint and check that the skids are still level and dry. While you build, keep the lumber stacked flat and covered, since wood that stays wet decays faster (USDA Forest Products Laboratory Wood Handbook).

Tools and ladders the plan lists

You probably have a circular saw, a drill/driver and a framing hammer already. Beyond those the list has a miter saw for the door braces (set to 29 degrees) and the trim, a reciprocating saw for cutting the bottom plate out of the door opening, two 24″ bar clamps, a 3 lb sledge for the brace stakes and a hand tamper for the gravel. For ladders, two 6 ft step ladders cover the walls and rafters, and a 20 ft extension ladder handles the roof. Tie it to the building at the top, and before you raise it or carry a sheet anywhere, look up and stay at least 10 ft from overhead lines.
