12x18 Gable Storage Shed Plan

The full plan is $19.99: buy the 12×18 gable shed plan. To see the drawing style first, open the free 12×18 gable shed plan PDF.

12×18 shed plans: the numbers for a site check

Mark the roof footprint and the gravel pad on your lot, not just the 18 by 12 ft walls, and leave room on every side to stand a ladder.

How the 12×18 shed plans go together

The steps run in build order: layout and pad (step 8), skids (9), floor frame (10), decking (11), back, front, left and right walls (12 to 15), joining the walls (16), the door (17), the pattern rafter (18), ridge, rafters and gable ends (19), roof sheathing (20), gable siding, fascia and soffit (21), drip edge and felt (22), shingles (23) and trim and paint (24). A build checklist at the back has a “date done” and “checked by” column for each stage.

Site layout, gravel pad and spliced skids

Stake the corners 18′ 0″ along the front and 12′ 0″ along the sides, then move one stake until both diagonals read 21′ 7 5/8″. Strip sod and roots over a 20′ by 14′ area, reset the stakes and check the diagonals again, since digging moves them.

Spread 4″ of 3/4″ crushed stone, compact it in two layers with a hand tamper and check it with a long straight board and a level. On a sloped yard the plan has you find the fall with a string and line level first. A few inches is built up with compacted stone on the low side; more than that means digging the high side down or setting solid concrete blocks on stone under the low skids.

No skid board is 18 ft long, so each of the four skids is spliced from two pieces butted on the gravel:

Each joint sits under a floor joist and 4 ft or more from the joint in the next skid. A 3 ft pressure-treated 2×4 scab goes on both sides of every joint, top flush, with six galvanized nails per scab. The skids run parallel to the front wall at 3′ 10 13/16″ on center, crown up, leveled along their length and to each other.

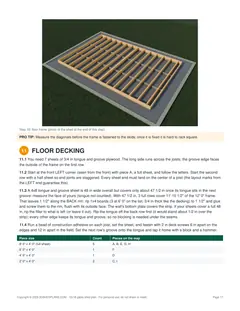

Floor frame and decking

The rims are also longer than any board, so each is cut as 9′ 3 1/4″ + 8′ 8 3/4″. Both rims break at 9′ 3 1/4″ from the left end, over a doubled joist: the list carries one extra 11′ 9″ joist that is nailed tight against the layout joist there, so each rim end gets three nails into a full joist. With the doubled one, that is 16 pressure-treated 2×6 joists at 11′ 9″.

The nailed frame weighs about 490 lb and racks out of square if you lift it, so you build it in place on top of the skids. Push the long corner until both diagonals match at 21′ 7 5/8″, then toe-nail or screw the frame to every skid crossing.

Seven sheets of 3/4″ tongue and groove plywood cover the deck. Three full rows cover 11′ 10 1/2″ of the 12 ft depth, which leaves 1 1/2″ along the back rim. The plan fills it with 1×4 boards ripped to 1 1/2″, glued and screwed to the rim, and has you rip the tongue off the back row so it sits flat. The decking map letters all nine pieces and says which two pairs share a sheet.

Walls: framing order, plate splices and lift weights

Each wall is framed flat on the deck, checked by its diagonals and raised as a bare frame by two people. The siding goes on after all four stand.

The 18 ft plates on the front and back walls are spliced too. The back wall’s bottom and top plates are 8′ 0″ + 10′ 0″, with the joint on a stud 8′ 0″ from its right corner, and its second top plate is 11′ 8 1/2″ + 5′ 8 1/2″, jointed 4 ft away so each layer covers the other’s joint. The front wall uses 5′ 9 3/4″ + 12′ 2 1/4″ plates and an 11′ 10 3/4″ + 5′ 6 1/4″ second top plate. On both walls the tacked diagonal brace crosses the plate joint so the frame cannot fold there while you tip it up.

• Hinge it. Drive two or three nails partly through the bottom plate into the deck at the tipping edge so the wall pivots instead of sliding.
• Brace from outside. 12 ft 2×4 braces run to stakes about 5 ft out, so the deck stays clear for the next wall. Before you side a face, move its braces inside onto deck cleats.
• Side walls drop in. Their 11′ 4 7/8″ plates are 1/8″ shorter than the gap between the front and back walls, so plumb those two first.
• Buy full 8 ft boards. The list asks for full 96″ 2x4s, not 92 5/8″ precut studs, because the back wall plates use 8′ 0″ pieces.

Siding is 15 sheets of T1-11 for the walls. On the front and back walls the siding stops 1 11/16″ below the top of the second top plate so the rafter tails pass over it; on the side walls it runs flush with the top of that plate, where the gable siding starts.

Door and windows: sizes and positions

The door opening is 6′ 0″ wide and 6′ 4 1/2″ tall, from 6′ 0″ to 12′ 0″ measured from the left corner of the front wall, under a header of two 2x8s at 6′ 3″ with 1/2″ plywood between them. Once the bottom plate is cut out of the opening the clear height is 6′ 6″.

The two leaves come from two new T1-11 sheets, since the cut-out piece is too short. Each is 2′ 11 5/8″ wide and 6′ 5 1/4″ tall, with a glued and screwed 1×4 frame (stiles at 6′ 5 1/4″, rails at 2′ 4 5/8″) and two Z braces cut on the miter saw at 36 degrees. Three T-strap hinges hang each leaf, the fixed leaf closes on two barrel bolts, and a 1×2 astragal and head stop finish the opening. Our guide on how to build shed doors covers the same method.

Both windows are prefabricated units for 36″ x 36″ rough openings under doubled 2×6 headers, with sills 3′ 1″ above the bottom plate:

• Left wall: from 1′ 11″ to 4′ 11″ measured from the back end of the plate.
• Right wall: from 1′ 11″ to 4′ 11″ measured from the front end of the plate.

Each opening is wrapped with flashing tape (sill, then sides, then head) before the unit goes in, and a drip cap goes over every head casing.

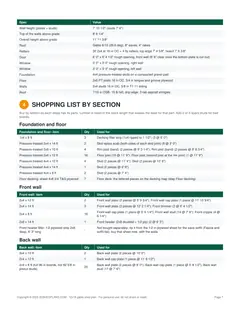

What is on the 12×18 shed material list

The shopping list is split by stage, so you can buy the floor first and the roof later. Lumber is listed in the stock length that wastes the least for each part.

The list also counts the temporary pieces: 12 wall braces, stakes, deck cleats and the ridge post, all reused later. For a closer look at quantities at this size, see our 12×18 shed material list guide.

Cut list and cutting plan

The cut list names every part, its lumber and its exact length: 18′ 0″ skids and rims (spliced), 11′ 9″ joists, 7′ 6″ studs, 7′ 6 3/8″ rafter boards, an 18′ 8″ ridge (spliced), 12′ 0″ rafter ties and 5′ 6 9/16″ collar ties, down to the 2 1/2″ lookout blocks and the 1×2 door stop.

The cutting plan says which board each part comes from and what is left over. Each rafter takes its own 8 ft 2×4, and the plan suggests keeping those offcuts for the lookout blocks and other short blocks. The 13 rafter ties each come from a 14 ft board. The gable studs come four to a board in matching lengths, so both gables are cut at once.

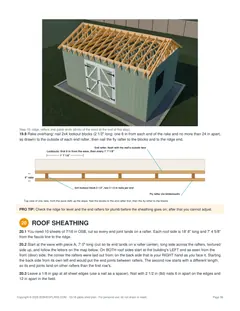

How the 12×18 gable roof is framed

The roof rises 3′ 2 5/16″ from the top of the walls to the top of the ridge at 6/12 (26.6 degrees). You make one pattern rafter from the straightest board: plumb cut at the ridge end, 7′ 4 5/8″ along the top edge to the tail plumb cut, and a birdsmouth with a 2 1/2″ seat and a 1 1/4″ heel, 8 15/16″ from the tail. The notch is 32% of the rafter’s depth, under the one-third limit. After testing it on both sides with a ridge-thick block, you trace 30 rafters and 4 fly rafters.

1. Ridge in two pieces. The 2×6 ridge is 18′ 8″ overall, so it is cut as 9′ 8″ + 9′ 0″, laid end to end on sawhorses and marked as one board. Its joint is centered on the rafter pair 9′ 4″ from the left corner.
2. Ridge supports. A center gable stud, 2′ 8 3/4″ tall, on each gable wall is braced plumb both ways, and a temporary 10′ 7 1/4″ 2×4 post holds the joint. Two people lift the ridge onto them and toe-nail it.
3. Rafter order. Set one end pair, then the other end pair, then the pair at the ridge joint. Check the ridge for level and center, then fill in the other 12 pairs, 15 in all. Each rafter gets a hurricane tie at the plate.
4. Tie the joint. Once its pair is nailed, the post comes out and a 24″ 2×4 cleat goes flat under the joint, with four 16d nails up into the ridge on each side.
5. Rafter ties. 13 2×4 ties, 12′ 0″ long, sit on the plates beside each interior pair, always on the right face as seen from the front, with their top corners clipped to stay under the sheathing.
6. Collar ties. 7 collar ties, 5′ 6 9/16″ at the long point, go on the left face of every other interior pair with their top edge 2′ 1 1/2″ above the plates. Their ends follow the roof slope, a 63.4 degree miter that most miter saws cannot reach, so the plan has you cut them with a circular saw.

The rafter ties keep the walls from spreading and the collar ties keep the pairs from pulling apart at the ridge in wind. The plan is clear that the ties are not a storage loft: 2x4s across a 12 ft span bend under heavy boxes. Our shed roof pitch guide explains what 6/12 means for headroom and runoff.

Gable ends, vents and the rake overhang

Each gable gets 8 studs plus the center stud, measured from the building corner so they sit over the wall studs, with tops cut at the roof angle. They range from 7 1/8″ at the ends to 2′ 7 1/8″ near the middle.

Z-flashing runs along the top of the side-wall siding, and the gable triangle above it is T1-11 cut in three vertical strips: 11′ 7″ wide along the flashing and 2′ 10 3/4″ high at the center. The center strip is notched 1 1/2″ wide at the peak so the ridge passes over it. Both gables come out of 2 sheets.

The roof breathes from low to high. Frieze blocks close every rafter bay over the two eave walls, ripped from whole 2x4s to 3 3/8″ with a 26.6 degree bevel on top. Each block gets three 1″ holes behind insect screen, so air comes in at the soffit gap. It leaves through a louvered 8 x 12″ vent in each gable, set in the bay between gable studs #3 and #4 with its opening’s near edge 4′ 4″ from the corner. Our shed ventilation guide explains why that path matters.

At each rake, 2×4 lookout blocks 2 1/2″ long are nailed to the end rafter (the first 6″ from the eave, then every 1′ 7 1/8″), and the fly rafter is nailed to the blocks for a 4″ rake overhang.

Fascia, soffit, felt and shingles

Each roof side is 18′ 8″ long and 7′ 4 5/8″ from the fascia line to the ridge. Ten OSB sheets cover both sides, cut to a six-piece map per side so every end joint lands on a rafter. Both sides start at the building’s left end, so on the back the joints still fall on rafters.

• Eave fascia. 1×6 in two pieces per eave, 9′ 8″ + 9′ 0″, with a square butt joint centered on the rafter tail at 9′ 4″.
• Rake fascia. Four 1×6 boards, both ends plumb and parallel, 7′ 6 1/4″ along either edge (7′ 9″ tip to tip), lapping the eave fascia at the bottom.
• Soffit. 1/2″ plywood strips ripped 8″ wide, nailed under the sloped tails in 7′ 0″ + 8′ 0″ + 3′ 8″ lengths per eave, with a 1/4″ vent gap at the siding.
• Drip edge and felt. Drip edge goes on the eaves under the felt and on the rakes over it, 8 pieces in all. The felt runs from the eave up with 2″ head laps, 4″ end laps and 6″ over the ridge.
• Shingles. A starter strip, then 18 courses per side at 5″ exposure, offset 6″ course to course, with 4 nails each (6 in high-wind areas). 46 ridge cap pieces cut from 16 shingles start at the end away from the prevailing wind. Total: about 279 shingles, 11 bundles.

What you can fit in a 12×18 shed

• Two zones from one door. The door sits in the middle of the 18 ft front wall, leaving 6 ft of wall on each side, so lawn gear can go to one side and tools or bikes to the other.
• A bench at each end. The left-wall window is near the back corner and the right-wall window near the front, each with its sill 3′ 1″ up, so either end can take a workbench with daylight.
• Long items on the back wall. The 18 ft back wall has no openings, which leaves room to hang ladders, lumber or a kayak along it.
• Riding mowers: measure first. The rough opening is 72″ wide, the floor sits 9 3/4″ above the ground and the leaves and hinges take up some of the opening. Check the mower deck width and plan a sturdy ramp. Our shed size guide for riding mowers has more on this.
• Headroom. The rafter ties sit at the top of the walls, 7′ 10 1/2″ above the floor, and the ridge is 3′ 2 5/16″ higher. Keep anything set on the ties light.

12×18 vs nearby shed sizes

The 12×18 adds 24 sq ft over a 12×16 without the 20 ft wall of a 12×20, which can matter on a narrow side yard. The 10×18 keeps the same 18 ft front and the same 6 ft door with 2 ft less depth and one window. The 12×18 lean-to gives the same floor under a single-slope roof, which suits a spot against a fence or a house wall.

Tools, ladders and fasteners the plan lists

Beyond a circular saw with a rip guide, a speed square, a framing square, a drill/driver and a framing hammer, the tool list adds:

• a miter saw for the door braces (set to 36 degrees) and the trim
• a reciprocating saw or oscillating tool for the flush cuts at the threshold and the window openings
• a 3 lb sledge for the brace stakes and two 24″ bar clamps for marking the rims together
• a 4 ft level, an 8 ft straight board and a string line for the skids, walls and ridge, plus a hand tamper for the pad
• two 8 ft step ladders, which reach the ridge, and a 16 ft extension ladder for roof work from the eave, about 8′ 8″ up

The fastener schedule gives the nail and count for every joint. The list counts 42 lb of 16d framing nails, about 1,497 nails plus 10%, and 30 H2.5A-type hurricane ties, one per rafter.

Free 12×18 shed plan PDF vs the full plan

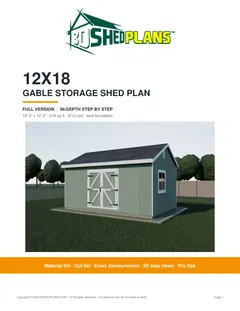

The free PDF is a 7-page streamlined version: the five stages (site and foundation, floor, walls, roof, trim and paint) with 3D views of the same model and framing previews. It has no material list, no cut list and no measurements.

The full 43-page plan adds every step, each wall drawn stud by stud with a position table, every splice with its joint position, the pattern rafter, the gable stud table, the sheathing map, the shopping list and the cut list. Every number comes from one 3D model of the shed, and the PDF lists the 101 automatic checks it passed before publishing.

Before you build a 12×18 gable shed

• Permits. At 216 sq ft and almost 12 ft tall, this shed may need a permit or run into setback or height limits, and rules vary by town and HOA. Check your local permit office before you buy lumber; our shed permit checklist lists what to ask. Call 811 a few working days before you dig.
• Snow and wind. The plan uses common small-shed framing. In heavy snow or high-wind areas, ask about rafter size, spacing and ground anchors before you build.
• Stagger the joints. Keep every splice where the plan puts it: skid joints under a joist and 4 ft apart, plate joints on studs, the ridge joint on a rafter pair.
• Skids. Use ground-contact rated pressure-treated 4x4s (UC4A or higher), set each one crown up, and shim a low skid only with gravel or treated shims.
• Materials. Store lumber flat and covered, since wet wood decays faster (USDA Forest Products Laboratory Wood Handbook). Check the stamp on each OSB sheet for its span rating (APA: OSB).
• Upkeep. Keep 6″ or more between the siding and the soil, and every spring check for lifted shingles, re-caulk the trim and make sure the skids are still level and dry.
