Build Your Own 10X14 Gable Storage Shed With Ease!
These 10x14 shed plans from 3DSHEDPLANS cover a 140 sq ft gable storage shed, 14 ft wide and 10 ft deep, with a 78 inch wide double door and one window. You get 40+ steps with 3D images and a material list that gives the quantity of every item.
Get the full plan PDF for $19.99 or download the free preview
Gable storage sheds in general are probably the most popular. They are easy to build and maintain and are relatively quite sturdy. This 10X14 Gable Storage Shed offers enough space for you to keep your supplies, equipment and hardware. If you are looking for a low maintenance storage shed then order now and start building this 10X14 Gable Storage Shed today!

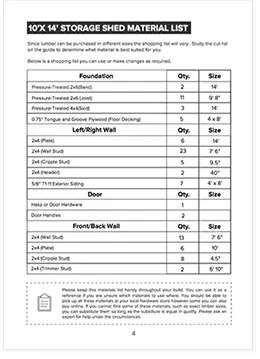

A Full-Fledge Material List with Required Quantity
The materials you use to build a shed are the secrets to your success. Unfortunately, most plans out there won’t precisely tell you what to buy and in what quantity. In fact, they would lure you to buy products from the plan-sellers. Luckily, we have a completely different motto. We want you to succeed in building your dream shed. And for that, we understand how important it is to get the right materials.

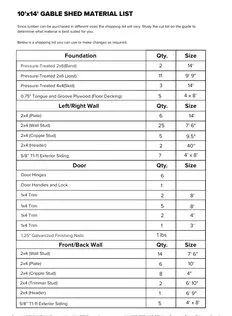

Our 10X14 Gable Storage Shed Plan comes with an all-inclusive list of materials, hardware and tools that you would need to build the shed. Nothing more, nothing less! No click baits! You get a printable list of materials that you can take to the hardware store. Did we forget to mention we have carefully only included materials that are light on your pocket and good in performance?

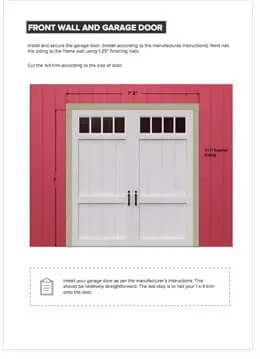

Simple, Easy to Understand Step by Step Instructions
Who would have ever thought to get their hands on a shed plan that would take them through the entire process with such ease! The 10X14 Gable Storage Shed Plan comes with easy to understand, step by step instructions for DIY newbies. Don’t worry if you don’t have any experience in building wooden structures. The plan you take you through without any complication jargons. Right from building the foundation to the walls and even the roofing, we have everything covered for you.

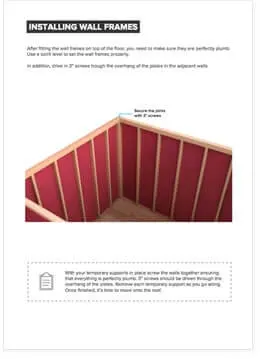

3D Rendered Images for Reality Check
2D images are a thing of the past! Our 10X14 Gable Storage Shed Plan comes with 3D rendered images, which means you get to see every corner, every angle and every inch clearly as if it is being right in front of you by a professional. You won’t have to scratch your head thinking how the shed should from the front, back or the sides. Even the rooftops are visualized in 3D for better understanding.
Building Your Own Shed vs. Getting Professional Help

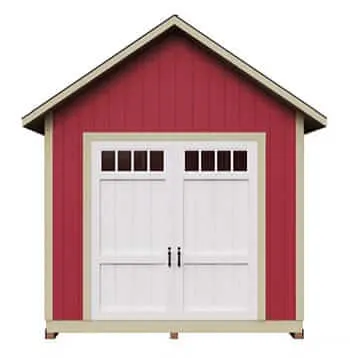

You Save What a Builder Would Charge
Probably the most important reason for building your own shed is that you save money. A builder charges for labor on top of the materials, for work you can do yourself. With our 10X14 Gable Storage Shed Plan, you get clear instructions, material lists and diagrams to go through the process easily.

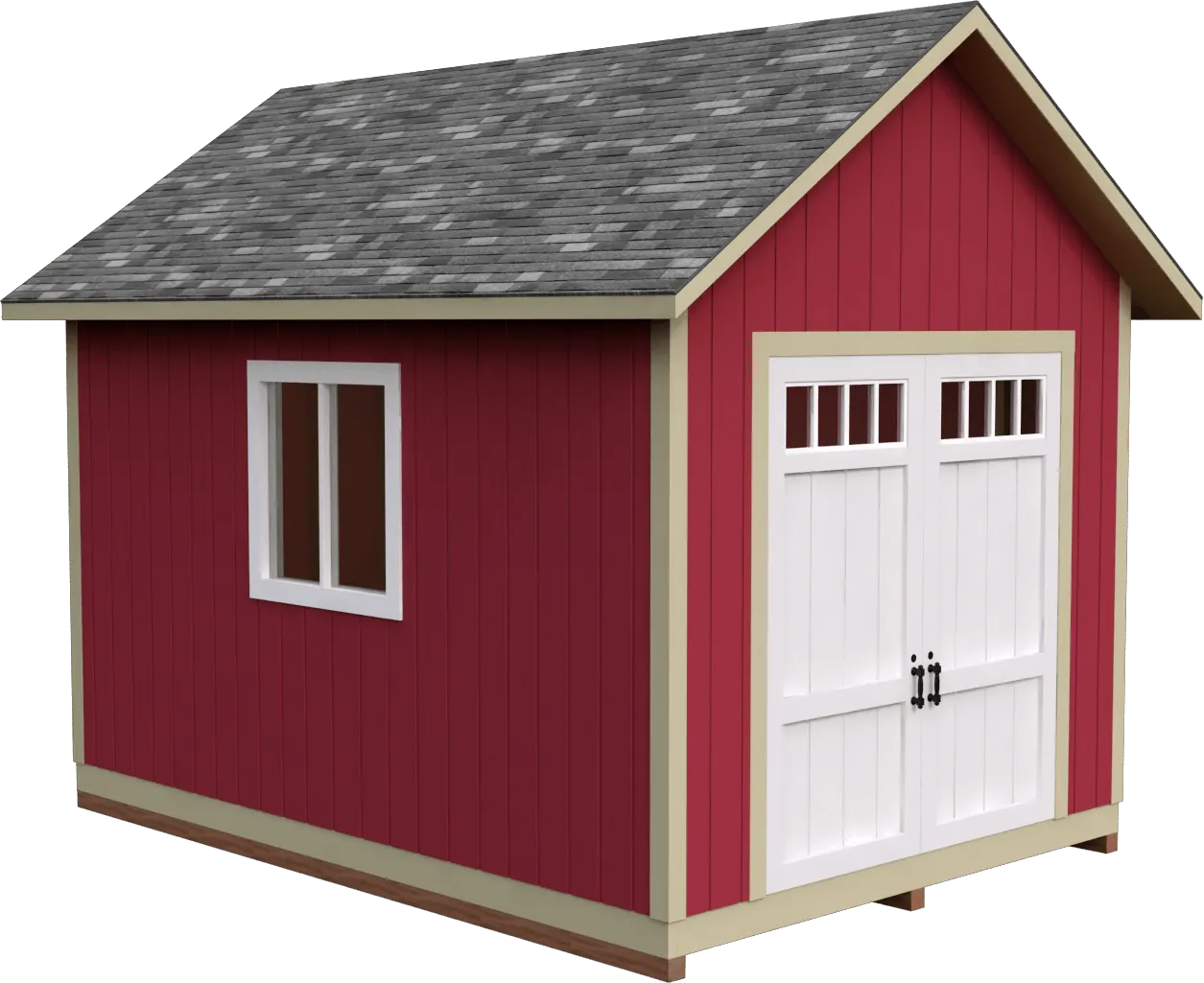

Choose Your Own Design and Make Your Dream Come True
Don’t fall for the marketing gimmicks of most professionals out there. When you start building your own shed, the world is out there for you to explore. With our material list and instructions, you will realize that you can build your dream shed without any design restrictions. The plan is simple yet it gives you the liberty to add in your own flavor!

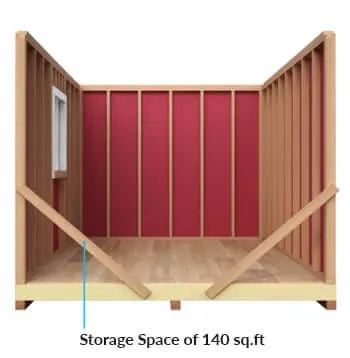

You Will Reclaim Your House Again
The 10X14 Gable Storage Shed is spacious enough to fulfil your storage requirements. Whether you are a gardeners or an athlete, you can use the shed to keep all sorts of your equipment and tools. Besides, the shed will add an exquisiteness to your garden while fulfilling its purpose.

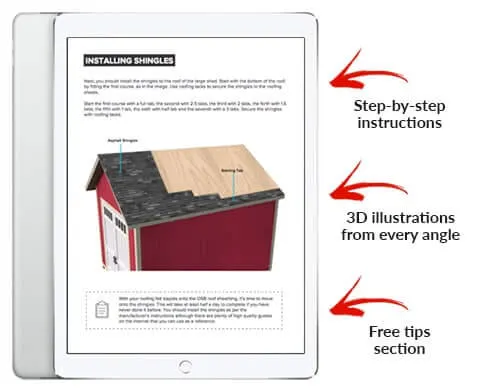

This Is Exactly What You'll Get with Your 10X14 Gable Storage Shed Plan!
- 40+ steps that expertly guide you through the whole process.
- Designed for beginners as well as for professionals.
- Explanatory 3D images so you can see exactly what to do next.
- Comprehensive materials list that gives you exactly what you need.
- Your plan will look great on any mobile device.
- Free PRO-TIP for every section.
- High quality PDF plan with everything you need emailed to you instantly.
- Shed Type
- Storage
- Roof Shape
- Gable
- Depth (ft.)
- 10'
- Width (ft.)
- 14'
- Depth (in.)
- 120"
- Height (in.)
- 136 1/2"
- Width (in.)
- 168"
- Exact Width x Depth
- 14' 8" x 10' 1"
- Sidewall Height (in.)
- 94 1/2"
- Number of Doors
- 1
- Door Type
- Double
- Door Opening Height (in.)
- 82"
- Door Opening Width (in.)
- 78"
- Door Opening Height (ft.)
- 6' 10"
- Floor Options
- 0.75" Tongue and Groove Plywood
- Number of Windows
- 1
- Recommend Roofing Material
- 7/16 OSB Sheet Board
How to Build a 10×14 Gable Shed in a Week or Less?
Having a shed in your backyard seems like a good idea until you figure out the cost. Most shed builders would charge you thousands of dollars just for building the shed, let alone cost of the materials. But, what if we tell you there is an easier and much more cost effective way of getting a shed for yourself?
Welcome to 3DSHEDPLANS – where you get to have user friendly, cost effective DIY shed plans, following which you can build a shed for yourself in less than a week. Yes, that’s right! With our PREMIUM & FREE SHED PLANS, you get step by step instructions with 3D images of each and every step of the process, complete list of tools & materials you would require and professional tips. With all of that, thousands of our customers have built their own sheds without requiring any highly priced shed building service.
If you still don’t believe us then here’s a simple 10×14 Gable Shed Plan that you can follow and see the magic happen:
Step # 1: Check the Rules Where You Live
Rules for sheds vary by town. Check your local permit office before you build.
Step # 2: Understand the Different Types of Shed Styles
Once you have checked the local rules, the next step is to understand the different types of sheds you can build on your property. This will give you a clarity as to which shed to choose.
-
Lean to Sheds: Lean to sheds are not standalone sheds instead they lean to one of the walls of your yard. This is the reason they are usually small or medium sized and are perfect for storing supplies or tools.
-
Gable Sheds: Gable sheds are the most popular type of sheds around. The gable roof is easy to build and at the same time is low maintenance, making it perfect for beginners to have.
-
Hip Roof Sheds: Hip roof sheds are probably the most exotic ones but at the same time the hip roof is a bit complicated to build and requires high maintenance. This is the reason why we only recommend investing time and resources in a hip roof shed if you want a large shed and you are ready to maintain it.
Step # 3: Understanding the Dimensions of Your 10×14 Gable Shed
Before you start with the building process, it is important to understand the overall dimensions of your 10×14 gable shed. The width from the front is 10 feet and the width from the side is 14 feet. The overall height of the shed is 12 feet and 5 inches. We recommend installing a garage door and a single window. However, you can swap these with whatever you like.
Step # 4: Getting the Required Tools & Materials
For this shed building project, you will be requiring simple building tools such as a saw, a hammer, drill machines, galvanized nails and the like. As for the materials, we recommend using pressure treated timber, tongue and groove plywood and asphalt shingles. For a complete list of tools and materials, we recommend downloading our 10×14 PREMIUM SHED PLAN.
Step # 5: Start with Building the Foundation
Now that you have all the tools and materials ready, you will start with building a solid foundation for the shed. Make sure you place the foundation on a spot without any clutter or plantation. Also, you need to make sure that this would be the area where you want your shed to be. You wouldn’t want to relocate such a heavy structure later on.
-
Use pressure treated timber to build the rims and joists for the foundation and nail them together using galvanized nails.
-

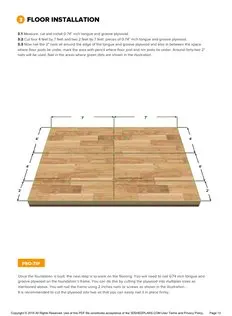

Next, use tongue and groove plywood for the flooring. Follow instructions in your shed plan for attaching the flooring to the foundation.
Step # 6: Building and Erecting the Walls
Once the foundation has been built, you will start working on the walls.
-
Use pressure treated timber to build the header rims, joists and struts for the walls. Join them together using galvanized nails.
-
Erect the walls on the foundation using temporary brackets. Fix the walls on the foundation with galvanized nails and remove the brackets.
-
Install T1-11 exterior siding on the walls and carefully cut out the area for the door and windows.
-
Install the door and window following the manufacturer’s instructions.

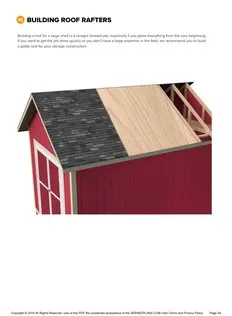

Step # 7: Building the Roof
Building the roof is considered the most difficult step when it comes to building a shed. However, if you follow our plan, you will build a roof in less than a week.
-
You will use pressure treated timber to build the roof rafters and attach them together using galvanized nails.
-
Once done, attach the rafters on top of the wall plates with galvanized nails.
-
Now, install OSB sheeting and felt on the roof.
This will complete the skeleton of your roof. Next step is to install the shingles.
Step # 8: Installing the Asphalt Shingles
Installing the asphalt shingles is easy. Simply follow the manufacturer’s instructions and start installing the shingles one by one. You can use any other shingles but we highly recommend going for asphalt shingles as they are cost effective and durable.
Step # 9: Installing the Trims, Fascia Boards & Soffits
With the shingles installed, the next step is to install the trims, fascia boards and soffits.
-
Start with installing the trims as per the instructions in your shed plan. Ensure that the trims sit flush with the shed roof.
-
The next step is to install the fascia boards for the right and left side of the shed. Nail them to the edges of the roof.
-
Install the soffits on the shed eves using galvanized nails.
Step # 10: Adding Some Finishing Touches
Your shed is almost ready. You just need to add the following final touches to make it look more presentable:
-
Use wood stain or paint to treat the exterior of the shed to protect it from moisture and harsh weather and make it look more presentable.
-
Use plasterboard to make cabins or separations in the shed.
-
Make sure to insulate the shed if you plan on installing electrical wires.
That’s it! Your 10×14 Gable Shed is now ready! Still confused about the steps? Download one of our PREMIUM SHED PLANS that will guide you step by step through the process with 3D images, marked diagrams and tips from our professional builders.
Order Now & Start Building Your Own 10X14 Shed Today!
30-day money-back guarantee
Fast & secure (SSL) checkout. Instant product delivery!
One time payment. No hidden fees.
The full PDF is $19.99. Buy the 10x14 gable shed plan, or compare the drawing style in the free 10x14 shed plan preview PDF.
10x14 storage shed plans: key specs
| Spec | 10x14 Gable Shed |
|---|---|
| Width x depth | 14' (168") x 10' (120") |
| Floor area | 140 sq ft |
| Overall height | 136 1/2" (about 11' 4 1/2") |
| Sidewall height | 94 1/2" |
| Door | 1 double door, 78" wide x 82" high opening |
| Windows | 1 |
| Floor | 3/4" tongue and groove plywood |
| Roof sheathing | 7/16" OSB with roofing felt |
| Siding | T1-11 plywood |
| Roof covering | Asphalt shingles |
What fits in a 10x14 shed
A 10x14 adds 20 sq ft over a 10x12 on a pad only 2 ft longer, enough for a workbench or another run of shelves.
- Yard storage. A push mower, a wheelbarrow, bags of soil and hand tools on the wall, with shelves along the 14 ft wall.
- Workbench corner. Put a bench under the window for light and keep the center aisle clear to the door.
- Wide items. The 78 inch double door opening takes carts and bikes side by side. Measure a riding mower before you count on it.
- Headroom. At 94 1/2 inch sidewalls, standard 72 inch shelving units fit with room above.
What the 10x14 shed plans include
- A printable material list with the quantity of each material, plus the hardware and tools you need.
- 40+ steps: the pressure-treated floor frame and plywood floor, wall framing and T1-11 siding, rafters set on the wall plates, OSB and felt, asphalt shingles, then trim, fascia and soffits.
- 3D rendered images of every side and the roof, so you can see each step before you cut.
- A pro tip for each section.
- A PDF emailed right after checkout that reads well on a phone.
You build the double door from the T1-11 siding cut out of the opening and 1x4 trim; its hinges, handles and lock are on the list. The window is a prefabricated unit on the list; install it by the maker's instructions.
Before you build a 10x14 shed
- Site. Choose flat, firm ground that drains away from the shed. Clear plants and loose soil and build the floor frame where the shed will stay. Our shed foundation guide covers the base.
- Floor. Lay the tongue and groove plywood across the joists and check the frame is square before you nail it off. See the shed floor guide.
- Rafters. Cut one rafter pair, test it on the walls, then use it as the pattern for the rest.
- Permits. A 140 sq ft shed can fall inside or outside local size limits for a permit, and rules change from town to town. Check your local permit office before you buy lumber.
- Roof sheathing. Lay OSB panels with the long side across the rafters and stagger the end joints (APA roof sheathing guide).
Related plans
- 2 ft shorter: the 10x12 gable shed plan.
- 2 ft longer, with two windows: the 10x16 gable shed plan.
- Square footprint: the 12x12 gable shed plan.
- Every gable shed plan in one place.
- Pricing the build first? See the free lumber, sheet and hardware list for a 10x14 shed.
Shed building guides
- 10×18 Shed Material List: Lumber, Sheets and Hardware
- How to Build a Firewood Shed: 8 Steps and Lumber List
- 8×14 Shed Material List: Lumber, Sheets and Hardware
- What Size Shed Is 120 Square Feet? 10×12 and Other Sizes
- Gambrel vs Gable Shed: Loft Room, Cost, Framing
- 6×12 Shed Material List: Lumber, Sheets and Hardware
Frequently asked questions
How big is the 10x14 gable shed?
The footprint is 14 ft by 10 ft, 140 sq ft. The walls are 94 1/2 inches tall at the sides, and the gable roof rises to 136 1/2 inches overall, so there is room for tall shelving and overhead storage near the center.
What foundation does the 10x14 gable shed plan use?
A floor frame of pressure-treated rim and floor joists, covered with 3/4 inch tongue and groove plywood. Build it where the shed will stand, on cleared, level ground.
Does the 10x14 plan include the door and window?
The plan frames the openings for one double door and one window. You build the double door from the T1-11 siding cut out of the opening and 1x4 trim; its hinges, handles and lock are on the list. The window is a prefabricated unit, also on the list.
What do I get when I buy the 10x14 shed plans?
A PDF emailed right after checkout with 40+ steps, 3D images, a material list with quantities and a pro tip for each section. It costs $19.99 and has a 30-day money-back guarantee.
